San Antonio Area Freeway System
PROJECT INFO: I-10 East/Loop 410 Interchange

This page last updated September 19, 2019

ADVERTISEMENT

This project is currently in design
The descriptions below are based on preliminary schematics and, as a result, details may change before the project goes to construction. This page will be updated when final schematics for the project are available.

Project locationLocation
I-10 East from Commerce to Foster and Loop 410 from Rigsby to I-35 North

Status
Advanced planning (see timeline below.)

Description
This $450 million project will replace the existing obsolete cloverleaf interchange at I-10 East and Loop 410 with a five-level interchange with flyover connectors and continuous access roads through the interchange on both I-10 and Loop 410. Those access roads will intersect at signalized intersections within the interchange (similar to the Loop 1604/US 281 or Loop 410/SH 151 interchanges), allowing for full local access in all directions.

In addition to the main interchange, this project will also make the following major improvements along Loop 410 north of I-10:

  • Construct an overpass at WW White Rd. and connect WW White to Cornerway Blvd.
  • Construct a Displaced Left Turn (DLT) interchange at the new WW White Rd./Cornerway Blvd./Loop 410 intersection
  • Replace the existing northbound Loop 410 left-hand exit to I-35 southbound with a right-hand exit and underpass
  • Re-align the Loop 410 mainlanes
  • Construct continuous access roads in both directions of Loop 410 over FM 78 and the adjacent railroad
  • Construct a continuous southbound access road through the Loop 410/I-35 southbound cutoff (near WW White) with crossovers/turnarounds
  • Remove the existing exit to FM 78 from the I-35 northbound to Loop 410 southbound connector and replace with a conventional exit ramp to a realigned frontage road providing access to WW White Rd. and FM 78 (via a turnaround)
The following additional improvements elsewhere in the vicinity will also be made:
  • Build a continuous access road on I-10 westbound between Loop 410 and WW White Rd.
  • Build turnarounds at WW White Rd.
  • Relocate various entrance and exit ramps along I-10 between Loop 410 and Commerce and along Loop 410 between I-10 and Rigsby Ave.

How this project will help
These interchanges are over 50 years old and are now obsolete. Growing traffic volumes in these corridors, including increasing truck traffic from the numerous nearby warehouses, is straining these old interchanges. The new interchanges will accommodate current and future traffic volumes and improve safety. The new underpass connecting WW White to Cornerway will improve local circulation by providing a new route to northbound Loop 410 from WW White and to southbound Loop 410 from the Cornerstone industrial park. Building this new intersection as a DLT will help it accommodate expected traffic volumes well into the future. Adding the new continuous frontage roads and turnarounds through the I-10/Loop 410 interchange, along Loop 410 near FM 78 and WW White, and also along I-10 westbound near WW White will provide improved local access and allow more optimal placement of entrance and exit ramps in the area. Adjusting other ramp locations in the project area will bring them to modern standards and improve traffic flow and safety.

Timeline
Due to the size of this project, it will need to be done in phases. Currently, there are two planned phases with the first phase expected to start in early 2021. The second phase is currently unfunded.

Phase 1, with an estimated cost of $100 million, is planned to include the following:

  • Both the Loop 410 northbound and southbound flyovers to I-10 eastbound
  • The I-10 westbound to Loop 410 southbound flyover
  • Access road improvements and ramp adjustments on I-10 from Loop 410 to Foster
  • Access road improvements and ramp adjustments on Loop 410 between I-10 and Rigsby
  • Re-alignment of the Loop 410 southbound mainlanes from I-10 to Rigsby
  • Closure of the southbound Loop 410 entrance ramp from WW White and relocation of the southbound exit ramp to Dietrich Rd.
The flyovers selected for this phase have the greatest need. None of the existing ramps in the cloverleaf will be removed in Phase 1; however, the turning movements that remain in the cloverleaf will benefit from the new flyovers because the traffic using the new flyovers will no longer be using the cloverleaf.

Schematics
Below are the detailed schematics for this project from TxDOT with my own annotations added to help clarify and explain the various elements. Click on an image below to open the schematic in a new window that you can scroll and zoom.

Note that the schematics used here are preliminary and subject to change. The complete project plans show an obsolete proposal for the I-10 mainlanes; the Phase 1 plans include the revised mainlane plans (which is currently under construction.)

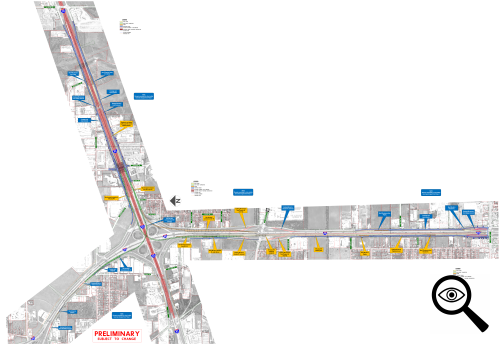

Phase 1
(Note: the schematic is somewhat large and may take a few seconds to open.)

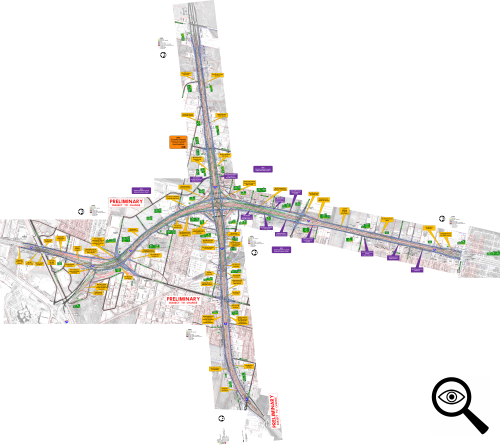

Complete project

(Note: the schematic is somewhat large and may take a few seconds to open.)
